The Early Mustang 4.6 3V Fuel Hat

The 4.6L 3V in the S197 Mustang GT is a legendary engine with huge aftermarket support, and there's almost no limit to what's been done with it. Making more power always takes more fuel, and that's where the TopHat™ comes in. Designed and manufactured by Custom Performance Engineering, Inc., the TopHat™ fuel hat for the 2008–2010 Mustang GT holds up to three fuel pumps. Customers commonly run AEM pumps or Walbro 255, 400, or 430 series pumps.

The TopHat™ handles virtually any fueling need, with room for up to three 465Lph pumps. It's designed to be plug and play: easy to install, reliable, and packed with features that make the upgrade simple so you can focus on your power goals.

Whether you want to run two pumps for a modest bump in power or you're targeting 1200hp on ethanol, the TopHat™ Mustang 4.6 3V fuel hat from Custom Performance Engineering, Inc. is an all-in-one fuel system upgrade.

Fuel returning through the return line is routed through a ½" stainless steel tube to the bottom of the tank, reducing aeration for a more consistent pickup. A side port channels fuel away from the pump pickup to cut aeration further, and the supplied O-ring plug lets you block off one direction or the other.

Mustang 4.6 3V Fuel Hat FEATURES

  • CAD/CAM/CMM engineered and manufactured
  • 6061 CNC billet aluminum
  • E85 ethanol ready
  • Up to 3 x 465Lph or 3 x 255Lph pumps, mounted vertically
  • Integrated merge from all pumps, with no need for an additional Y-block or plumbing
  • Uses OEM siphon
  • -10 AN feed
  • -8 AN return
  • Low profile fitment
  • Integrated attachment for OEM fuel level sender
  • Hermetically sealed wires with O-ring

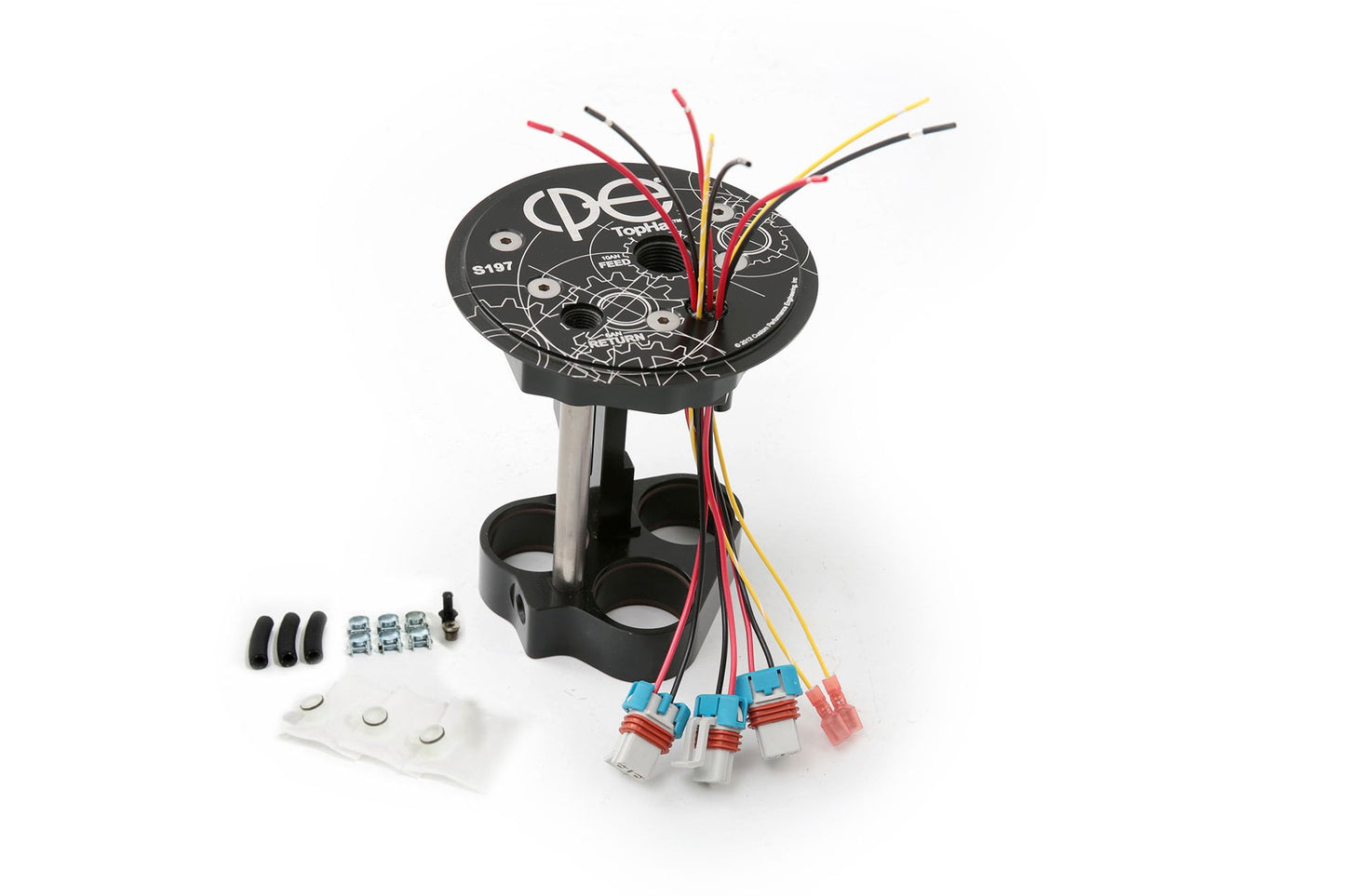

  • Hardware, filters, fuel lines, clamps, and more included to accommodate various configurations

Supports Up to 3 Pumps

The TopHat™ supports up to three 400lph-class fuel pumps, delivering far more fuel than typical 255lph pumps. O-rings secure each pump at the optimal height and isolate vibration from the aluminum body.

Integrated Merge

To lower the cost of upgrading, reduce part count, and eliminate extra plumbing that can leak, the merge for all three pumps is built into the hat itself. Easy installation is a top priority for our customers, and cp-e® designs with that in mind.

OEM Fit and Finish

Reverse engineered with a CMM arm, modeled on OE components, and precision CNC machined, the TopHat™ is as plug and play as possible. It uses the factory siphon system to draw fuel from the other side of the tank, and its CNC milled features accept the factory level sender in exactly the OEM position.

The wiring harness is isolated and sealed from the fuel tank with a proprietary Delrin wire seal. Delrin has one of the highest fuel resistances of any plastic, so it was chosen for a lifetime of trouble-free operation.
