Custom Performance Engineering

TopHat™ Ford Mustang 5.0 GT, EcoBoost & 5.8 GT500 Fuel Hat by cp-e®

TopHat™ Ford Mustang 5.0 GT, EcoBoost & 5.8 GT500 Fuel Hat by cp-e®

Regular price $516.56 USD
Regular price $629.95 USD Sale price $516.56 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FDTH00004B

View full details

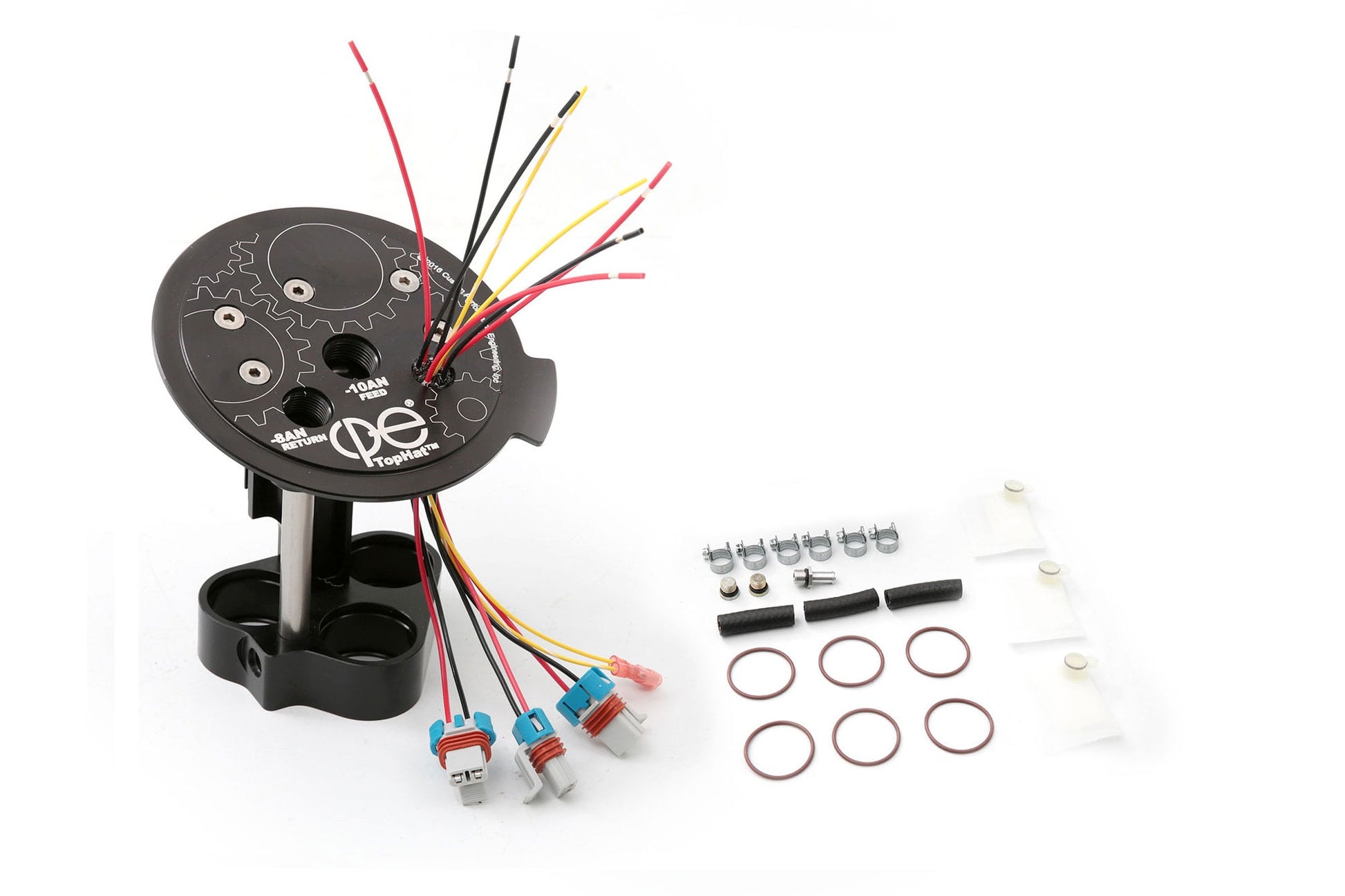

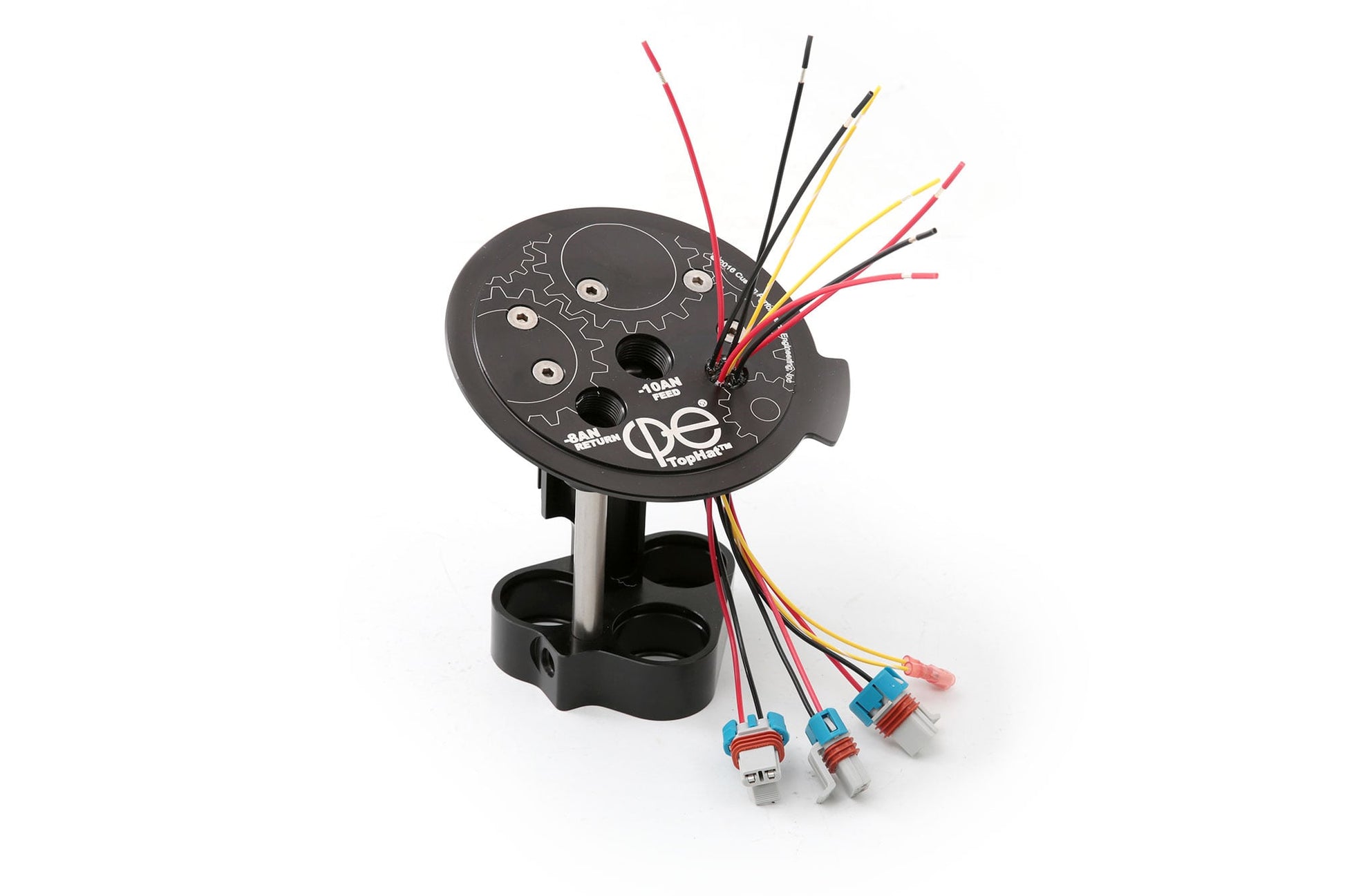

Mustang 5.0 & EcoBoost TopHat™

The Coyote in the 2011+ Mustang GT is one of the most impressive engines Ford has ever built. It's over-engineered and responds so well to modifications that many builds have already outgrown the factory fuel pump. The Mustang fuel tank has room for up to three pumps, and customers commonly run AEM pumps or Walbro 255, 400, or 430 series pumps.

The TopHat™ handles virtually any fueling need, with room for up to three 465Lph pumps. It's designed to be plug and play: easy to install, reliable, and packed with features that make the upgrade simple so you can focus on your power goals.

Engineered and manufactured by Custom Performance Engineering, Inc. for S550 Mustangs and later S197 Mustangs, including the EcoBoost and the 5.8L GT500, the TopHat™ is an all-in-one fuel system upgrade. It works whether you want a second pump for a modest bump in power or you're targeting 1200hp on ethanol.

Fuel returning through the return line is routed through a ½” stainless steel tube to the bottom of the tank, reducing aeration for a more consistent pickup. A side port channels fuel away from the pump pickup to cut aeration further, and the supplied O-ring plug lets you block off one direction or the other.

Mustang TopHat™ FEATURES

  • CAD/CAM/CMM engineered and manufactured
  • 6061 CNC billet aluminum
  • E85 ready, just add pumps
  • Up to 3 x 465Lph or 3 x 255Lph pumps, mounted vertically
  • Integrated merge from all pumps, with no need for an additional Y-block or plumbing
  • Uses OEM siphon

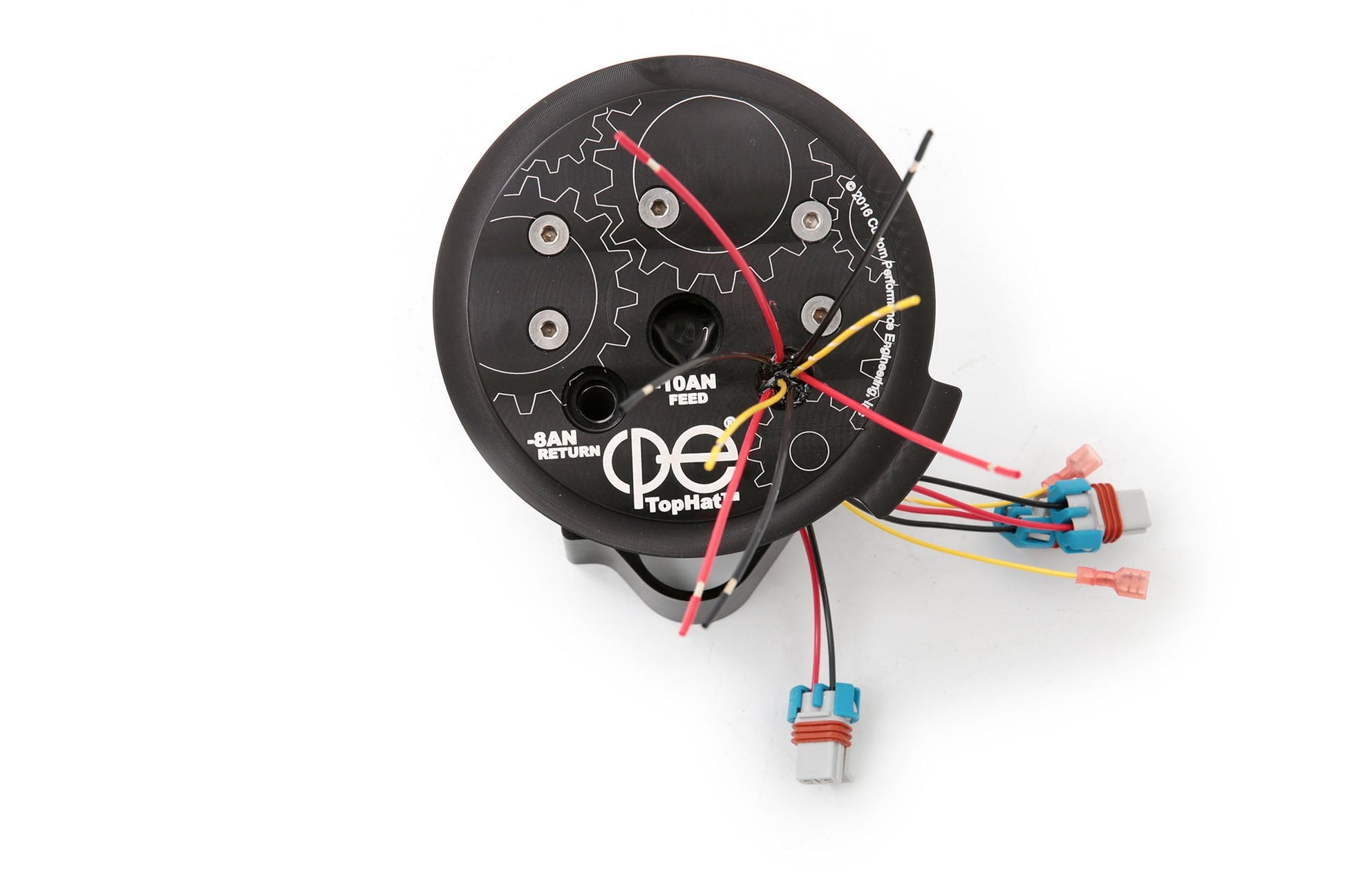

  • -10 AN feed
  • -8 AN return
  • Low profile fitment
  • Integrated attachment for OEM fuel level sender
  • Hermetically sealed wires with O-ring

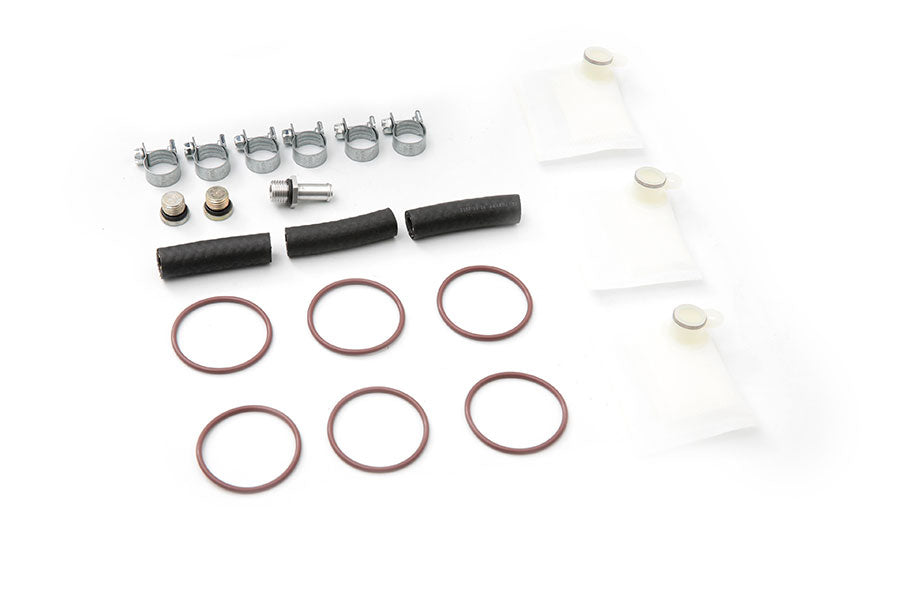

  • Hardware, filters, fuel lines, clamps, and more included to accommodate various configurations

Use Up to 3 Pumps

Run up to three 400lph-class fuel pumps for far more fuel than standard 255lph pumps can supply. Each pump is held at the optimal height by O-rings that also isolate vibration from the aluminum body.

Integrated Merge

The merge for all three pumps is built right into the hat, which lowers the cost of upgrading, reduces part count, and eliminates extra plumbing that could leak. Easy installation matters to our customers, and cp-e® designs with that in mind.

Factory Fit & Finish

Using a CMM arm to reverse engineer OE components and precision CNC machining, cp-e® made the TopHat™ as plug and play as possible. It uses the factory siphon system to draw fuel from the other side of the tank, and its CNC milled features hold the factory level sender in exactly the OEM position.

A proprietary Delrin wire seal isolates the wiring harness from the fuel tank. Delrin is one of the most fuel-resistant plastics available, chosen for a lifetime of trouble-free operation.

Not California exhaust compliant | No implied CARB certification | Off-road use only
